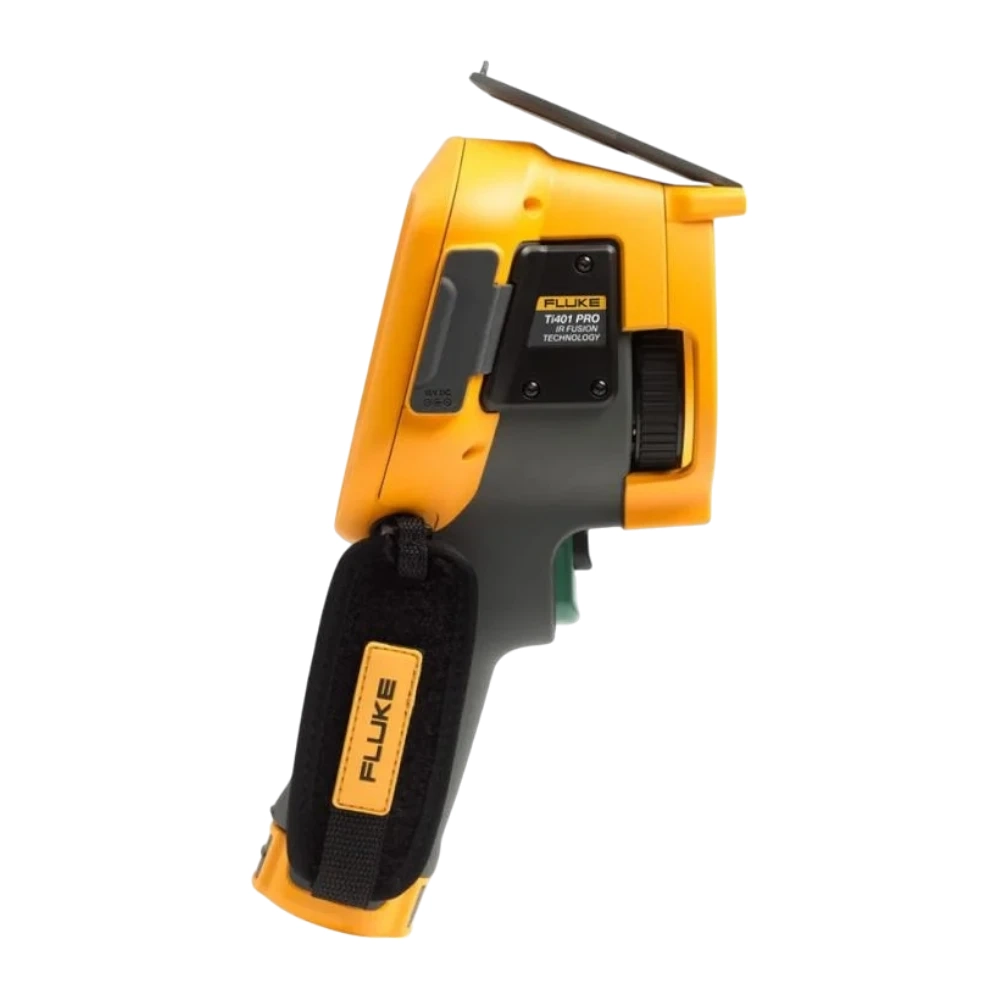

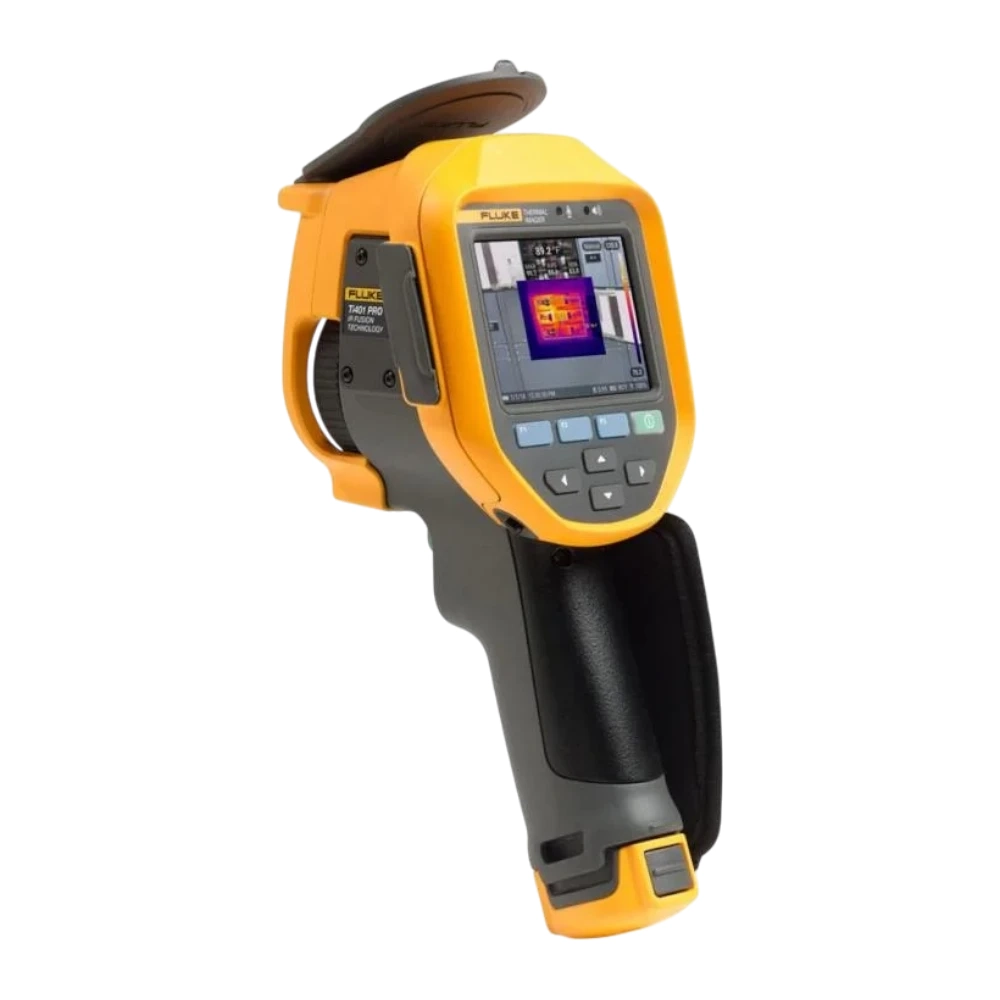

Cámara termográfica Fluke Ti401 PRO

Modelo: TI401-PRO

Fabricante

Precio

379,102.03 MXN IVA Incluido

326,812.09 MXN (Sin IVA)

Cantidad

Descargar Catalogo

Características principales

Elija la cámara térmica que le proporciona imágenes enfocadas en cuestión de segundos. El enfoque automático LaserSharp™ utiliza un medidor de distancia láser incorporado que calcula y muestra la distancia al objetivo deseado y ajusta inmediatamente el enfoque.
Vea aún los más pequeños detalles en la imagen y descubra anomalías más rápido con una resolución de 640 x 480
Ajuste la combinación de luz visible e infrarroja en las imágenes con la tecnología IR-Fusion™ patentada por Fluke
Administre los datos, capture múltiples mediciones (eléctricas, mecánicas y térmicas) y organícelas para cada pieza con el software Fluke Connect™
Simplemente la mejor óptica para transmitir energía y producir imágenes infrarrojas de alta calidad. Las cámaras térmicas de Fluke utilizan solo lentes 100 % germanio, torneados con diamante y con recubrimiento especial.

Incluye:

Cámara termográfica con lente estándar de infrarrojos
Fuente de alimentación CA y cargador de baterías (incluidos adaptadores universales CA)
Dos paquetes de baterías robustas e inteligentes de ión-litio
Cable USB
Cable de vídeo HDMI
Tarjeta micro SD de 4 GB
Estuche rígido de transporte
Estucle flexible de transporte
Correa de mano ajustable
Disponible por descarga gratuita: software Fluke Connect® SmartView® y manual de usuario

Especificaciones

Key features
Infrared resolution	640 x 480 (307,200 pixels)
SuperResolution	No
IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
Field of view	34 °H x 24 °V
Minimum focus distance	15 cm (approx. 6 in)
MultiSharp Focus	No
LaserSharp Auto Focus	Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Wireless connectivity	Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect app compatible	Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets	Through the desktop, assign images to assets, easily compare measurement types in one location and create reports.
Fluke Connect instant cloud upload	Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect instant server upload	Yes**
IR-Fusion technology	Yes, adds the context of the visible details to your infrared image
Ruggedized touchscreen display	3.5 inch (landscape), 640 x 480 LCD
Ergonomic design	Pistol-grip design for one-handed use
Thermal sensitivity (NETD)**	≤0.075 °C at 30 °C target temp (75 mK)
Level and span	Smooth auto and manual scaling
Touchscreen adjustable level/span	Yes. Span and level can be easily and quickly set by simply touching the screen
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0 °C (3.6 °F)
Minimum span (in auto mode)	3.0 °C (5.4 °F)
Built-in digital camera (visible light)	5MP
Frame rate	60 Hz or 9 Hz versions
Laser pointer	Yes
LED light (torch)	Yes
Digital zoom	No

Data storage and image capture
Extensive memory options	Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Image file formats	bmp, jpeg, is2
Memory review	Thumbnail and full screen review
Software	Full analysis and reporting software with access to the Fluke Connect system
Analyze and store radiometric data on a PC	Yes
Export file formats with Fluke Connect software	Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation	60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required
IR-PhotoNotes	Yes - 2 images
Text annotations	Yes. Including standard shortcuts as well as user programmable options
Video recording and formats	No
Remote control operations	Remote display through Fluke Connect
Auto capture (temperature and interval)	No

Battery
Batteries (field-replaceable, rechargeable)	Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life	2-3 hours per battery (actual life varies depending on settings and usage)
Battery charging time	2.5 hours to full charge
Battery charging system	Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving	User selectable sleep and power off modes

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	-20 °C to +650 °C (-4 °F to +1,202 °F)
Accuracy	±2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Line temperature graph	No

Color palettes
Standard palettes	9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast palettes	9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

Smart lenses
Macro-25 micron lens: 25 MAC2	Yes
2 x telephoto lens: TELE 2	Yes
4 x telephoto lens: TELE4	Yes
Wide angle lens: WIDE 2	Yes

General specifications
Color alarms (temperature alarms)	High temperature, low temperature, and isotherms (within range)
Infrared spectral band	7.5 μm to 14 μm (long wave)
Operating temperature	-10 °C to +50 °C (+14 °F to +122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to +122 °F)
Relative humidity	10 % to 95 % non-condensing
Center-point temperature measurement	Yes
Spot temperature	Hot and cold spot markers
User-definable spot markers	No
User defined measurement boxes	1 expandable-contractible measurement box with MIN-MAX-AVG temp display
Hard Case	Rugged, hard carrying case; soft transport bag
Safety	IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility	IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM	IEC 61326-1
US FCC	CFR 47, Part 15 Subpart B
Vibration	0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
Shock	25 g, IEC 68-2-29
Drop	Engineered to withstand 2 meter (6.5 feet) drop with standard lens
Size (H x W x L)	27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
Weight (battery included)	1.04 kg (2.3 lb)
Enclosure rating	IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
RoHS compliant	Yes

Please Note: Fluke Connect analysis and reporting software is available in all countries but Fluke Connect is not. Please check availability with your authorized Fluke distributor.

**Indicates Fluke Connect™ features that will be available soon. Watch the Fluke website for software and firmware updates.
