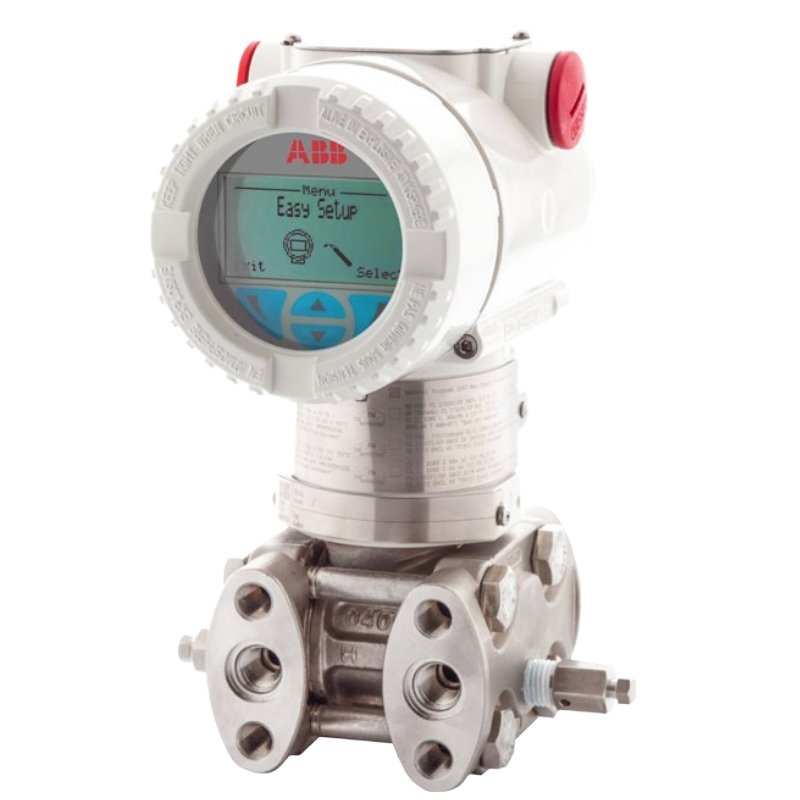

Tranmisor de Presion Diferencial 266DSH



Span Limits / Base Accuracy: 1.6 and 160 kPa (16 and 1600 mbar, 6.4 and 642 in. H2O) / Base accuracy 0.06%
Maximum Working Pressure (Static Pressure): Standard Static
Diaphragm Material / Fill Fluid: Hastelloy C-276 / Silicone oil (NACE)
Process Flanges and Adapters Material / Connection: AISI 316L ss / 1/2 in. -14 NPT female through adapter (horizontal connection)
Bolts Material / Gasket Material: AISI 316 ss / Viton (MWP = 16 MPa / 160 bar / 2320 psi) (NACE)
Housing Material / Electrical Connection: Aluminium alloy (Barrel version) / 1/2 in. - 14 NPT
Output: HART and 4 to 20 mA - Standard functionality
Hazardous Area Certification: FM Approvals (USA) approval (XP, DIP, IS, NI, Type N)
Integral LCD: Integrated digital LCD display
Mounting Bracket Shape / Material: For pipe/wall mounting - AISI 316L ss
Additional Tag Plate: Tag and certification stainless steel plates and laser printing of tag
Certificates: Inspection certificate EN 10204 3.1 of calibration (9-point)



MODELO: 266DSH.H.S.K.B.3.A.7-.E6..LS..B2....I2...C1

CONDICION: NUEVO

GARANTIA: 1 AÑO

STOCK: 3 PZAS.
